Transposing Actual Pitches

Musician handles two kinds of transpositions. This topic describes how to transpose actual as-performed pitches in a song. If you do not want to change the actual as-performed pitches but, rather, want to change the key in which the pitches are notated, in order to match the key of an instrument, see Transposing to the Key of an Instrument.

When Musician transposes a song, it shifts up or down the pitches of all of the measures in all of the staves by some number of half-steps that you specify.

One exception here is that Musician does not shift the pitches of any staff that is assigned to a "drum staff". Most MIDI files adhere to the General MIDI specification. In the General MIDI specification, channel 10 is reserved for percussion ("drum staff") sounds. Different pitches on MIDI channel 10 produce different types of percussion sounds. To shift the pseudo pitch of a drum sound will entirely change the sound, such as from a Side Stick to an Acoustic Snare. You would not be happy with the results if Musician shifted "pitches" in drum staves. Therefore, Musician does not transpose the pitches of notes assigned to a drum staff. You can specify which MIDI channels produce drum sounds for a given device using the Device Properties command in the MIDI Device Configuration Window. Normally you do not have to specify which MIDI channels produce drum sounds, because Musician by default assumes that a device adheres to the General MIDI specification.

When Musician transposes pitches, it also transposes the pitches of chord names. For example, if you transpose pitches up two half steps, Musician will change a "C7" chord to "D7". In the case of ambiguous chord root spellings, such as "F#7" versus "Gb7", Musician makes its best guess based on the surrounding harmony. Wherever Musician makes the wrong guess, you can quickly correct the error, as described in Editing Chord Names.

1.	Optionally, select a region with the measures you wish to transpose by dragging the mouse over them while holding down the CTRL key. This will pre-select the measure range in Step 2 of the Transposition Wizard, as described below.

2.	Choose the Transpose Actual Pitches command in the Staff menu.

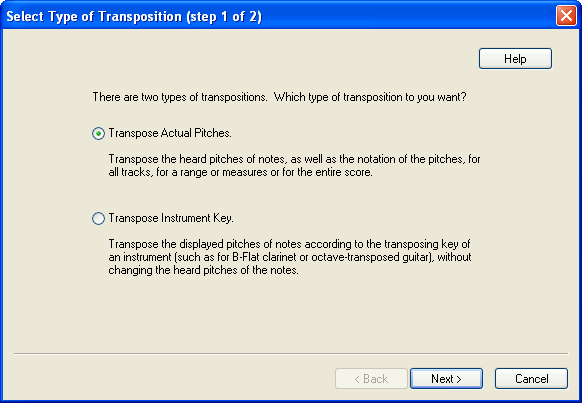

The first step of this two-step wizard is intended to help you make sure that you understand the distinction between the two types of transposition, and have chosen the correct type.

3.	Confirm that you intend to transpose actual pitches, and hit the Next button.

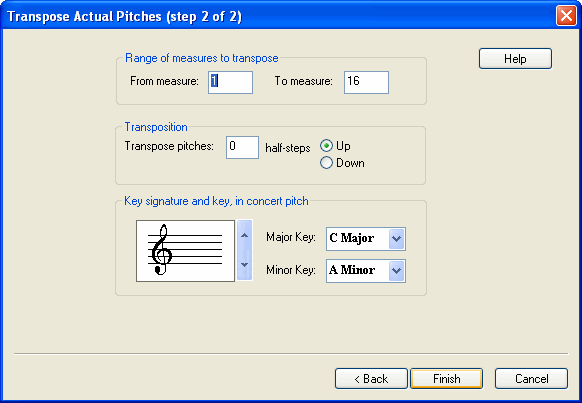

If you selected a range of the score in step #1 of this procedure, then the Range of Measures to Transpose will be pre-selected in the wizard step above.

5.	Enter the range of measures for which you wish to transpose notes, if you did not pre-select the range.

6.	Enter the number of half steps you wish to shift pitches up or down. There are 12 half steps in an octave. Choose "Up" or "Down".

Use the up and down arrows to choose a different number of flats or sharps in the key signature.

The key signature initially shown in the dialog box will be that at the beginning of the selected range, or at the beginning of the song if you did not pre-select the measures.
