Assigning a Bank to a MIDI Device |
If this is the first MIDI bank that you are specifying for a device with multiple banks, make sure that you specify the Bank Select Method. See Specifying Properties of a Device. For devices with multiple MIDI banks, each bank has a distinct bank value. You will need to refer to your device owner's manual to determine the bank value, as well as to find the patch names for that bank. Determining the bank value from the information in the device owner's manual can be somewhat difficult. The bank value should be presented in a heading at the top of the list of patch names for the bank.
CC0: 80; CC32: 0
The most common Bank Select Method is "Normal", with values for CTRL 0 and CTRL 32. To add a MIDI bank to a device:
-- OR -- Type "qdc" for Quick Device Configuration.

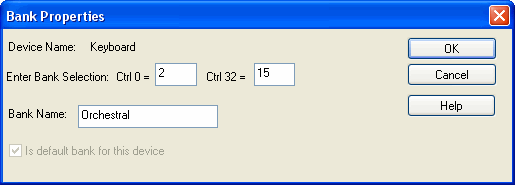

If the bank select method is "normal", then the Bank Properties dialog box will look like this:
The newly added bank will now be listed under Banks in the Device Properties dialog box.
|
