Sustain Pedal Marks

<< Click to Display Table of Contents >>

Navigation:  Editing the Music Notation > Editing Music Annotations >

Sustain Pedal Marks

Previous pageReturn to chapter overviewNext page

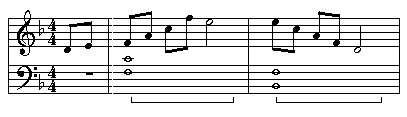

With Composer, you can add a pedal mark to a score, drawn as a line, typically below the left-hand staff of a keyboard part, as in the following example:

    PedalAnnotationExample

If a pedal mark crosses a barline into a measure that is on a subsequent staff, Composer automatically divides the pedal mark, as illustrated below:

    PedalAnnotationCrossSystemBreak

Composer does not directly interpret pedal marks during playback. Instead, you can quickly convert pedal marks to MIDI pedal performance, and convert MIDI pedal performance to pedal marks. You also can graphically edit the MIDI sustain pedal control for regions of the score.

prcarrow To add a pedal mark:

1.With the mouse, navigate to the Sustain Pedal Palette.

-- OR --

Type SHIFT+S to display the Sustain Pedal Palette. SHIFT+S also displays Slur Palette. If the Slur Palette is displayed first, then type SHIFT+S a second time to display the Sustain Pedal Palette.

    PedalMarkPaletteNavigationAndExplanationComposer

Composer will change the mouse cursor to indicate Add Mode: AddModeMouseCursor

2.Choose the style of pedal by clicking the Bracket Style pedal_marks button or the Text Style pedal_marks1 button.

-- OR --

Type "b" or "t" for the bracket or text style of button.

3.Click and hold the mouse in the score where you want the pedal mark to begin.

Composer will insert the pedal mark in the score. It will extend horizontally from the point where you clicked the mouse to slightly past the end of that measure. Composer highlights the newly added pedal mark in blue to indicate that it is selected so that you can immediately edit it:

    PedalMarkAdd

3.While holding down the mouse button, drag the end of the pedal mark to where you want it to end. Then release the mouse button.
4.Before attempting to add another pedal mark, press the ESC key to complete the editing of the newly added pedal mark.

prcarrow To change the starting or ending position of a pedal mark:

1.Enter Select Mode.
2.With the mouse, click the pedal mark you wish to edit.
3.Drag one of the two handles at the start or end of the pedal mark, as explained in the previous procedure.

-- OR --

Move the start or end of the pedal mark using one of the following palette buttons or keyboard short-cuts:

PedalMoveChar

4.Press the ESC key to complete the editing of the selected object.
