You can add key signature changes at the beginning of any measure of any staff in the score.

In transcribing a MIDI file, Composer examines whether the file includes key signatures. If it does, then Composer uses the key signatures saved in the file. Otherwise, Composer analyzes the harmony of the song to determine the key signature. This analysis does not account for possible mid-song key signature changes. Composer determines a single key signature for the whole song.

Composer optionally transposes instrument parts according to their native keys. For more information, see Transposing to the Key of an Instrument.

After Composer transcribes a song, you can update the key signature at the beginning of the song, as well as at the beginning of any measure. Composerapplies the key signature to all staves, or to a single selected staff, according to your specification.

If you want to add a key signature change in the middle of a measure, you should insert a double barline or dotted barline at the beginning of the new key signature. The procedure for doing this is described at the end of this topic.

prcarrow To insert a key signature at the beginning of a measure:

1.With the mouse, navigate to the Key Signature Palette.

-- OR --

Type SHIFT+K.

KeySigPaletteNavigationAndExplanation

It would be impractical for Composer to display a palette of every possible key signature. Instead, the Key Signature Palette has just the one button.

When you navigate to the Key Signature Palette, Composer will automatically enter Add Mode. The mouse cursor will turn into this shape: key_signatures

2.Click the mouse anywhere in the measure where you want the key signature to be added or changed.

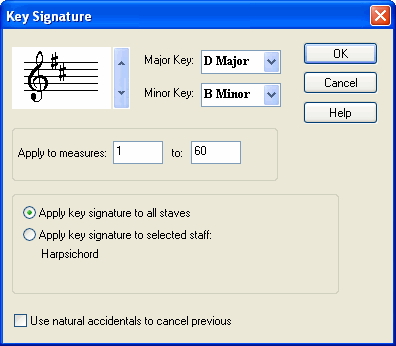

  Composer will present you with the following dialog box:

KeySignatureDlg

3.Choose the key signature from the dialog box by using the up and down arrows to spin through 0 to 7 flats or sharps, or select the key signature by major or minor key name.
4.If you wish the key signature change to be applied to all parts, rather than to just the part where you clicked the mouse, then choose "Apply key signature to all parts".
5.Add or remove a check mark in the last box, according to whether you want the new key signature to be preceded with natural accidentals for each accidental removed in the new key signature. For example, if the previous measure has a key signature of four sharps, and the new key signature is two sharps, then this option produces the following key signature with two cancellation natural accidentals:

key_signatures1

6.By default, the key signature will be applied to the entire range of measures in the song. Choose a smaller range of measures, if desired.
7.Click the OK to complete the change.

Composer will apply the new key signature from your selected measure up to the next measure where there is a different key signature, or to the end of the song if there are no other key signature changes.

prcarrow To change a key signature:

1.Enter Select Mode.
2.Click the mouse on a key signature object.

Composer will indicate that the key signature has been selected by highlighting it with the color blue. Composer will also display the Key Signature Palette.

3.Click the key signature key_signatures1 button in the palette.

-- OR --

Type SHIFT+ENTER, that is, while holding down the SHIFT key, hit the ENTER key.

Composer will then present you with the Key Signature dialog box, as shown above.

4.Continue with step #3 in the first procedure, to select the new key signature and options for applying the new key signature to the score.

prcarrow To insert a key signature in the middle of a measure:

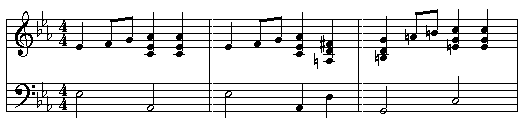

In this example, the key signature will be changed from three flats (E-flat major) to one sharp (G major) in the last beat of the second measure:

  KeySignatureChangeMidMeasureBefore

Note that we do not necessarily advocate the practice of inserting key signatures in the middle of measures. In this example, the harmony change from the second to the third measure might be just as clearly, or even more clearly, represented by postponing the key signature change until the beginning of the third measure.

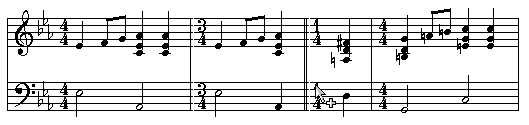

1.Insert a barline in the middle of the measure, as described in the topic Editing Barlines:

  KeySignatureChangeMidMeasureBarlineAdded

Optionally, change the barline style from double barline to a dotted or dash style, as described in the topic Editing Barlines.

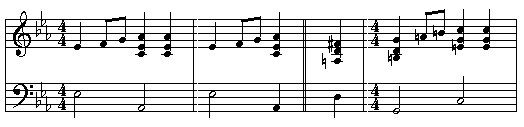

2.Hide the meters in the newly divided measure, as described in the topic Editing Meters (Time Signatures):

  KeySignatureChangeMidMeasureMetersHidden

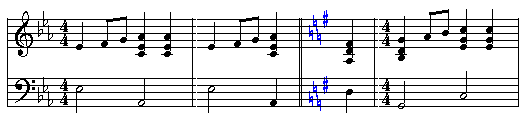

3.Insert a new key signature after the newly added barline:

  KeySignatureChangeMidMeasureKeySigAdded
